CPT Testing in Akron (Cone Penetration Test)

At roughly 1,000 feet above sea level along the Ohio & Erie Canal watershed, Akron’s subsurface tells a story shaped by glacial Lake Erie’s ancestral shorelines. We run into tills, lacustrine silts, and occasional soft clay lenses that standard drilling alone cannot always unravel. This is where the Cone Penetration Test provides a continuous in-situ record of tip resistance, sleeve friction, and pore pressure, letting us map transitions between stiff till and softer deposits without sample disturbance. For Akron projects near the Little Cuyahoga Valley or redeveloped industrial corridors, that stratigraphic resolution matters: a missed thin silt seam at 18 feet can change the seismic site class from C to D under IBC Chapter 16, altering foundation design loads significantly.

A single CPT sounding in Akron’s glacial sequence gives you more stratigraphic detail than a dozen SPT borings spaced five feet apart.

Process overview

What we see repeatedly across Akron’s drift-mantled terrain is that SPT blow counts in mixed till can bounce from 12 to 35 within two feet, giving a misleading picture of consistency. A CPT sounding captures that transition as a smooth profile of corrected cone resistance (qt) and friction ratio (Rf), enabling soil behavior type (SBT) classification after Robertson’s normalized charts. We push 15 cm² or 10 cm² electronic cones at a steady 2 cm/s, logging qc, fs, and u2 continuously. Where the groundwater table sits high—common from late fall through spring in Summit County—the piezocone’s pore pressure dissipation tests let us estimate in-situ permeability directly. In Akron’s glaciolacustrine clays, these dissipation curves often reveal layered drainage that bulk lab tests miss. The data feeds directly into liquefaction triggering assessments, pile capacity methods like LCPC or ICP-05, and settlement calculations under embankment loading.

Continuous profiling: No skipped layers between samples, every centimeter logged
Piezocone (CPTu): Pore pressure measurement for groundwater and drainage characterization
Seismic CPT (SCPT): Downhole shear wave velocity for site class determination
Real-time data: On-screen qc, fs, u2 plots during sounding for immediate stratigraphic interpretation

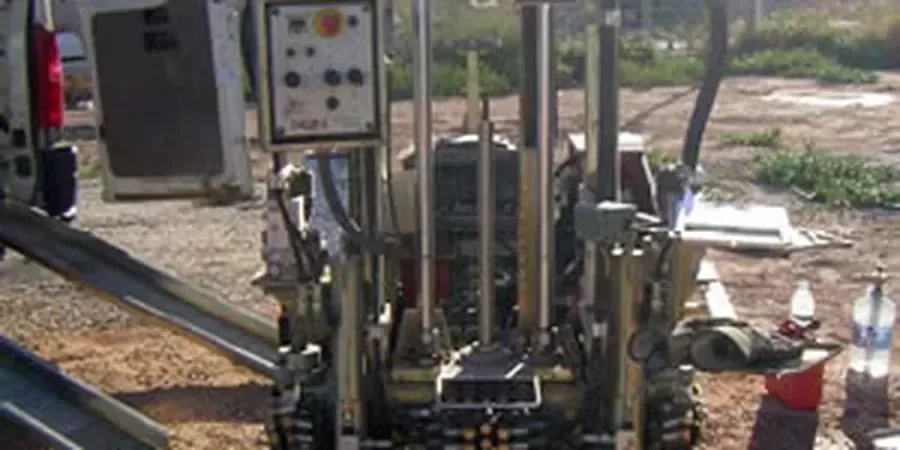

CPT Testing in Akron (Cone Penetration Test) - Geotechnical Site Characterization

Local context

A warehouse expansion on Akron’s south side encountered a compressible silt layer at 22 feet that standard borings logged as “sandy clay.” The CPT trace showed low qt and elevated friction ratio over a 3-foot interval, with slow pore pressure dissipation indicating poor drainage. Without that data, differential settlement under column loads would have gone unnoticed until floor slabs cracked. In Akron’s post-glacial setting, soft lenses deposited in quiet-water environments can be thin enough to miss with split-spoon sampling yet thick enough to cause foundation performance problems. For deep excavations along the canal corridor, undrained shear strength derived from net cone resistance guides shoring design, while the continuous profile flags any sand seams that could lead to base instability if dewatering is not controlled. Ignoring these subtle transitions between stiff till and soft lake sediment is the fastest path to construction claims.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.biz

Reference standards

ASTM D5778-22 (Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils), IBC 2021 / ASCE 7-22 (Seismic site classification using shear wave velocity from SCPT), AASHTO T 313-22 (Acceptance of CPT for transportation projects, referenced in ODOT specifications)

Additional services

Seismic CPT and Vs Profiling

Adding a seismic module to the cone string captures downhole shear wave velocity at discrete intervals. This yields a direct Vs profile for ASCE 7 site class determination—critical in Akron where glacial till over lake deposits can produce stiffness inversions that affect ground motion amplification.

Dissipation Testing and In-Situ Permeability

Piezocone dissipation tests measure the rate at which excess pore pressure decays after penetration stops. We use these curves to estimate horizontal coefficient of consolidation and in-situ permeability in Akron’s silts and fine sands, often more reliably than lab consolidation tests on disturbed samples.

Typical parameters

Parameter	Typical value
Cone type	Piezocone (CPTu), 15 cm² base area
Standard followed	ASTM D5778-22
Measured parameters	qc, fs, u2, inclination, temperature
Push rate	2 cm/s ± 5%
Maximum depth (typical rig)	20 tons reaction, 80–100 ft in local till
Data reduction	Robertson (1986, 2016) SBT charts, normalized qt, Rf, Bq
Reporting	Continuous logs with SBT, qt, Rf, u2, and dissipation curves

Quick answers

How much does a CPT sounding cost in Akron?

For a single CPTu sounding to 40–60 feet depth in Summit County, budget between US$190 and US$240 per sounding, which typically includes mobilization, data acquisition, and a PDF log with soil behavior type classification. Deeper pushes or seismic CPT add incremental cost due to extra equipment and processing time.

What depth can CPT reach in Akron’s glacial till?

With a 20-ton reaction truck on firm ground, we routinely push to 80–100 feet in the weathered till that dominates Akron’s subsurface. Stiff, overconsolidated lodgement till can cause refusal earlier, especially if cobbles or boulders are present. In those cases we switch to a pre-drilled hole through the obstructions and seat the cone below the problem zone.

Does CPT replace soil borings for an Akron project?

CPT provides continuous in-situ data but does not recover physical samples. For most projects in Akron, a combined approach works best: CPT soundings for stratigraphic detail and engineering parameters, supplemented by a smaller number of traditional borings to verify soil classification via lab testing on samples. This hybrid strategy satisfies both IBC requirements and local building department review.

How quickly can CPT results be turned around in Summit County?

We deliver preliminary CPT logs with soil behavior type classification within 24 hours of field work. Final interpreted reports—including normalized parameters, dissipation analyses, and foundation recommendations—typically take three to five working days depending on the number of soundings and project complexity.
