Akron sits on a complex mix of glacial till, lacustrine silts, and buried valleys carved by the Cuyahoga River, where soft soil amplification can turn even distant seismic events into a structural problem. ASCE 7-22 Chapter 11 places Summit County in a low-to-moderate hazard zone, but the site class—often D or E once we run the shear wave velocity profile—drives the design forces up significantly. We approach base isolation seismic design as a direct solution for irregular or essential buildings that need to stay operational after the design earthquake. The shift from fixed-base to isolated response isn't just about adding bearings; it requires a tight feedback loop between the geotechnical model and the structural period target. For Akron sites with 30 to 60 feet of soft clay over shale, the isolation system must handle both the spectral demand and the long-term settlement from static loads, which we verify with consolidation data and CPT testing to map the compressible layers without disturbing the sample.
Base isolation works when the soil model and the isolation period are designed together—not when one is handed off to the other.
Process overview
Local context

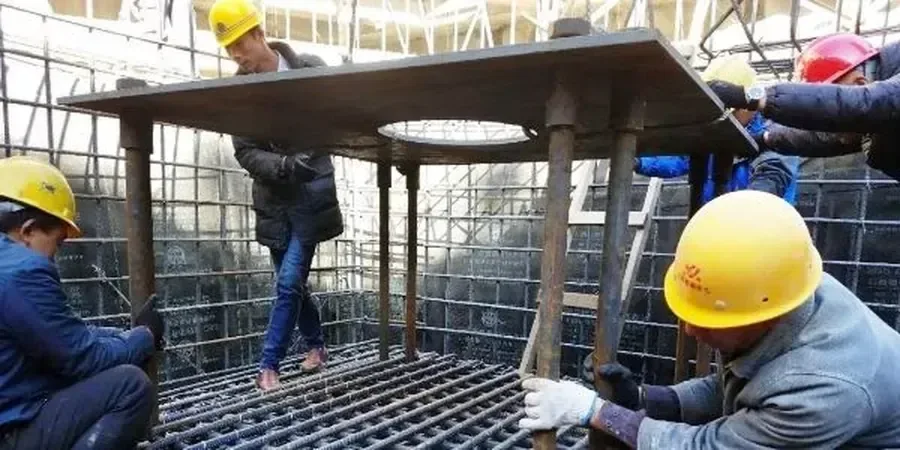

The isolation interface is a horizontal plane where the building and the ground move independently, so the physical setup must account for a moat or seismic gap that stays clear for the full displacement range. In Akron, where freeze-thaw cycles heave the upper 3 to 4 feet of silty clay, the moat cover detail becomes a maintenance item: if water infiltrates and freezes, the gap closes and the isolation system locks up. We specify drainage boards and flexible utility connections rated for the design displacement, and we verify the backfill stiffness around the moat wall so passive earth pressure doesn't restrain the building during the first large excursion. The other risk is differential settlement under the isolators, especially where the glacial till pinches out against the shale bedrock near the Merriman Valley; we use a combination of test borings and SPT drilling to catch abrupt changes in bearing stratum elevation before the isolator pedestals are cast.
Visual overview
Reference standards
ASCE 7-22 Minimum Design Loads for Buildings and Other Structures, ASCE 41-23 Seismic Evaluation and Retrofit of Existing Buildings, IBC 2021 Chapter 18 Foundations and Soils, ASTM D4428 / D4428M-14 Crosshole Seismic Testing, ASTM D7400 / D7400M-19 Downhole Seismic Testing
Additional services
Site-Specific Seismic Hazard Analysis
We run probabilistic and deterministic hazard for the Akron site, develop uniform hazard spectra, and select spectrally matched ground motion pairs per ASCE 7-22 Chapter 21 for nonlinear time history analysis.
Isolation System Design and Peer Review
Bearing type selection (LRB, FPS, HDR), 3D model with FNA or response spectrum analysis, moat detail drawings, and third-party peer review coordination for Akron building department approval.
Geotechnical Investigation for Isolator Foundations
CPT, SPT, and geophysical surveys to establish site class, bearing capacity, settlement, and lateral stiffness at each isolator location, with consolidation testing on Shelby tube samples from the glacial sequence.
Typical parameters
Quick answers
What makes base isolation different from a standard fixed-base design in Akron?
A fixed-base building dissipates energy through structural yielding, which means damage. Base isolation decouples the superstructure from the ground motion, concentrating displacement in the isolation plane. In Akron's soil conditions, site class D or E amplifies long-period energy, so the isolation period must be tuned to sit above the amplified spectral peak—typically 2.5 to 3.5 seconds—to reduce story accelerations and protect non-structural components.
How much does a base isolation seismic design study cost for a building in Summit County?
For a typical Akron project, the combined geotechnical investigation and isolation design study runs between US$4,100 and US$9,620, depending on the number of borings, the complexity of the ground motion analysis, and whether nonlinear time history analysis is required under ASCE 7-22 Chapter 17.
Can base isolation be retrofitted to an existing building in Akron?
Yes, but it requires careful phasing. We lift or temporarily support the structure, cut the columns, and insert isolators on new pedestals. The main geotechnical challenge in Akron is ensuring the existing footings can handle the concentrated loads during the jacking sequence—we verify this with core samples and load tests before design.
Which ASCE 7 analysis method applies to base-isolated buildings?
ASCE 7-22 Chapter 17 permits equivalent lateral force for regular structures under certain limits, but for most Akron projects on soft soil we use response spectrum analysis as a minimum, and nonlinear time history analysis when the isolation system exhibits significant velocity-dependent behavior or when the site-specific spectra have a pronounced soil amplification peak.
